Long Travel Kit

05 & Newer Frontier

SPACDKFRTLONGTRAV
Pricing: $2,449.99
Qty:

Description

Xterra Long Travel Kit is the perfect upgrade for those looking to increase wheel travel with no modifications to vehicle required. Modifications could be made to gain additional travel and run larger shocks. This kit cycles 14" of travel with shock hoops and inner fender wells removed. The upper arms are made with 1.25" .120 wall chromoly tubing with 1" uniballs for more articulation and 3/4" heims for easy alignment. The lower arms are CAD designed and fully boxed to handle whatever you throw at it. The kit is designed with a ball joint in the lower arm which allows it to work with both 2wd and 4wd vehicles. Extended axles need to be purchased separately for 4wd applications. Comes with billet heimed tierods as seen in the last photo. Please write in the notes what spindles you will be using with this kit upon purchase. This kit is designed to be used with aftermarket shocks and to be ran without a sway bar.

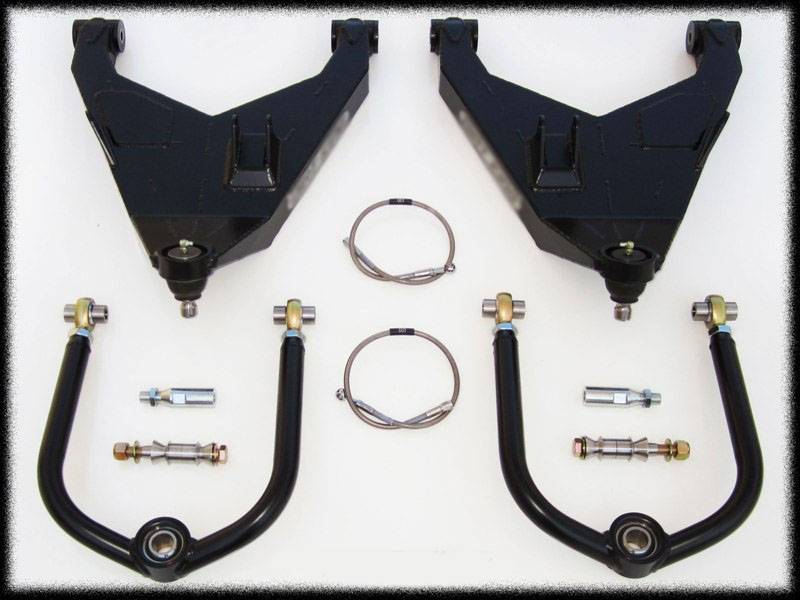

    Includes:
  • Chromoly upper control arms
  • Boxed and internally ribbed lower control arms
  • Ball joints with grease fittings
  • Bushings???
  • Bump stop pads
  • Limit strap tabs
  • Heims
  • Uniballs
  • 304 stainless steel high angle misalignment spacers
  • Grade 8 hardware
  • Heat treated chromoly tierod extensions
  • 21" DOT approved brake lines

Details

  • SPACDKFRTLONGTRAV
  • SPACDKFRTLONGTRAV
  • New

Shipping Information

  • Item Requires Shipping
  • 65.0 lbs.
