TITAN STAGE ONE SUSPENSION SYSTEM

2004-2015 NISSAN TITAN

SPACICTTS1SYSTEM

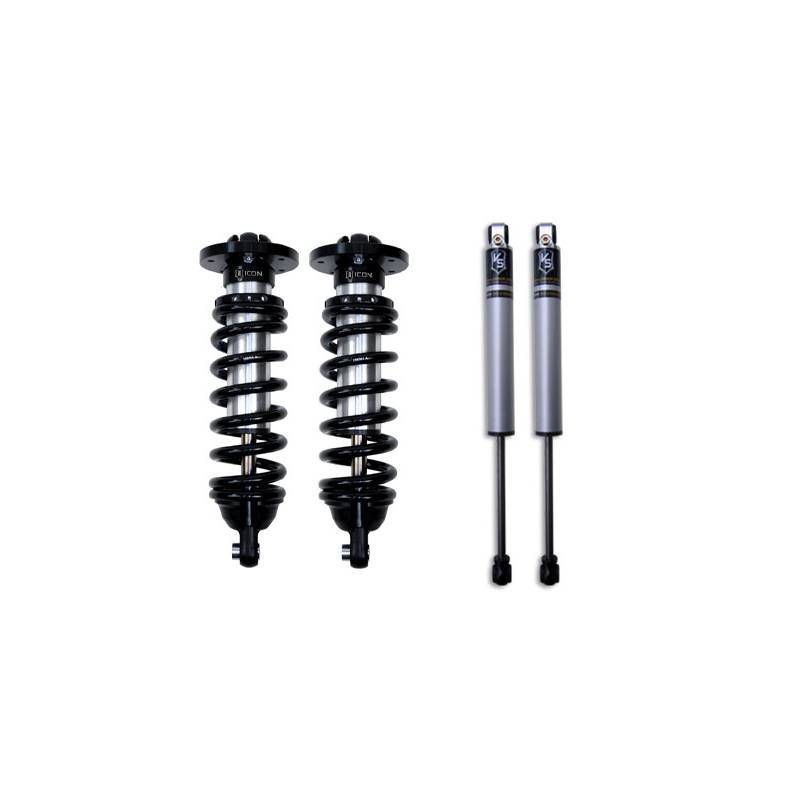

ICON Titan suspension systems are designed with maximum performance and the serious driver in mind. Primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
Pricing: $1,619.85
Qty:

Description

    Key Features:
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers from 0-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 aluminum body rear IFP shock with 5/8" polished nitro steel shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Made in the USA
  • Wheel & Tire Fitment Info: OEM Wheels & Tires:
  • Yes
  • Aftermarket Wheels:
  • 8" - 9" Wide Wheel With 5" Backspace
  • Aftermarket Tires:
  • 33 x 11.50 Tall Tires
(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Details

  • SPACICTTS1SYSTEM
  • SPACICTTS1SYSTEM
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 45.0 lbs.
  • W12.0000” x H6.0000” x L39.0000”
